HVC-025
E1020T
AC board: FA-45 N9V
DC board: FA-60 18V-0
Input: 100VAC 50/60Hz
Output: 9VDC 400mA
Center negative
Barrel Jack
5.5mm x 1.7mm
¶ Photos

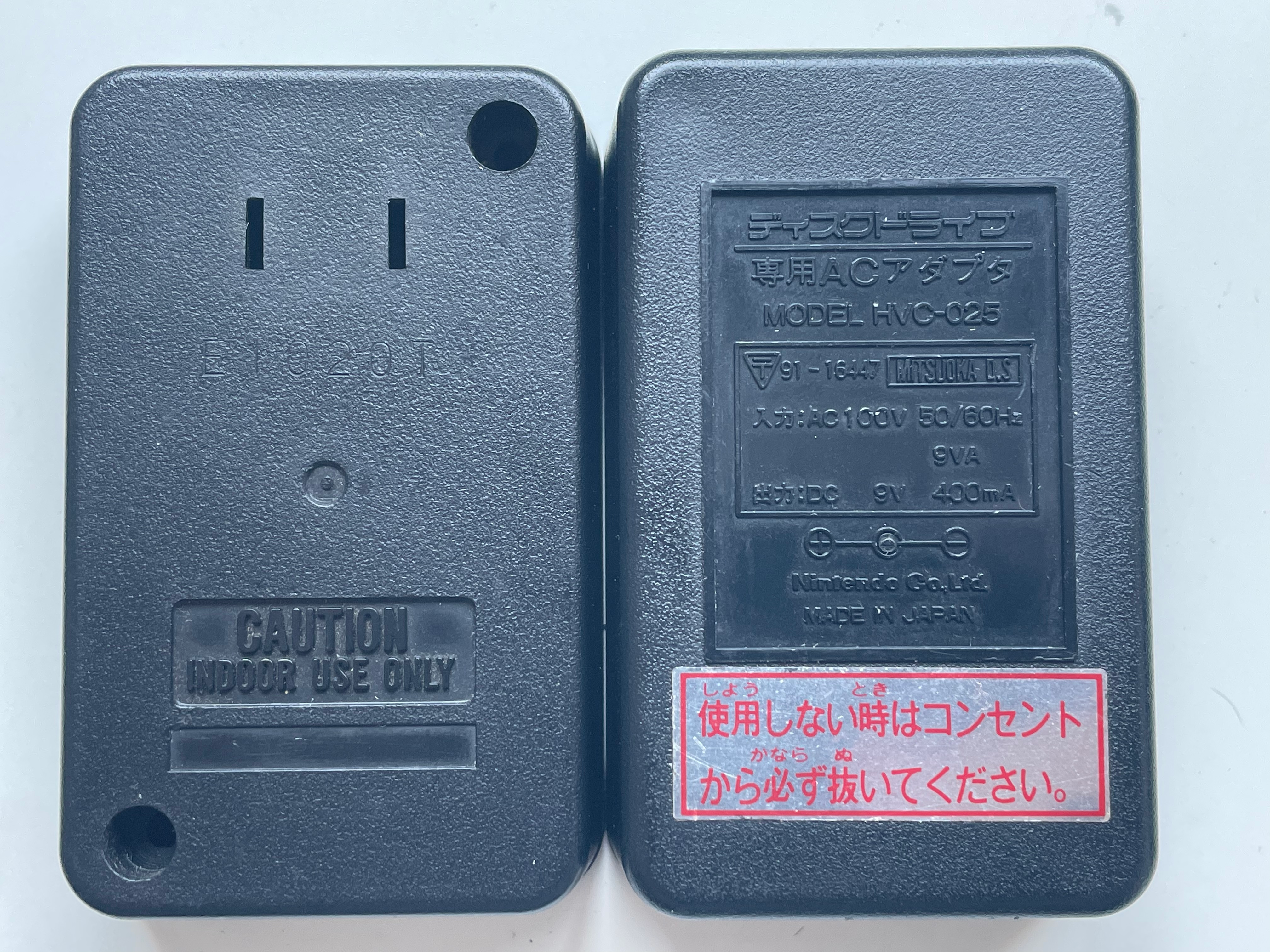

¶ Case

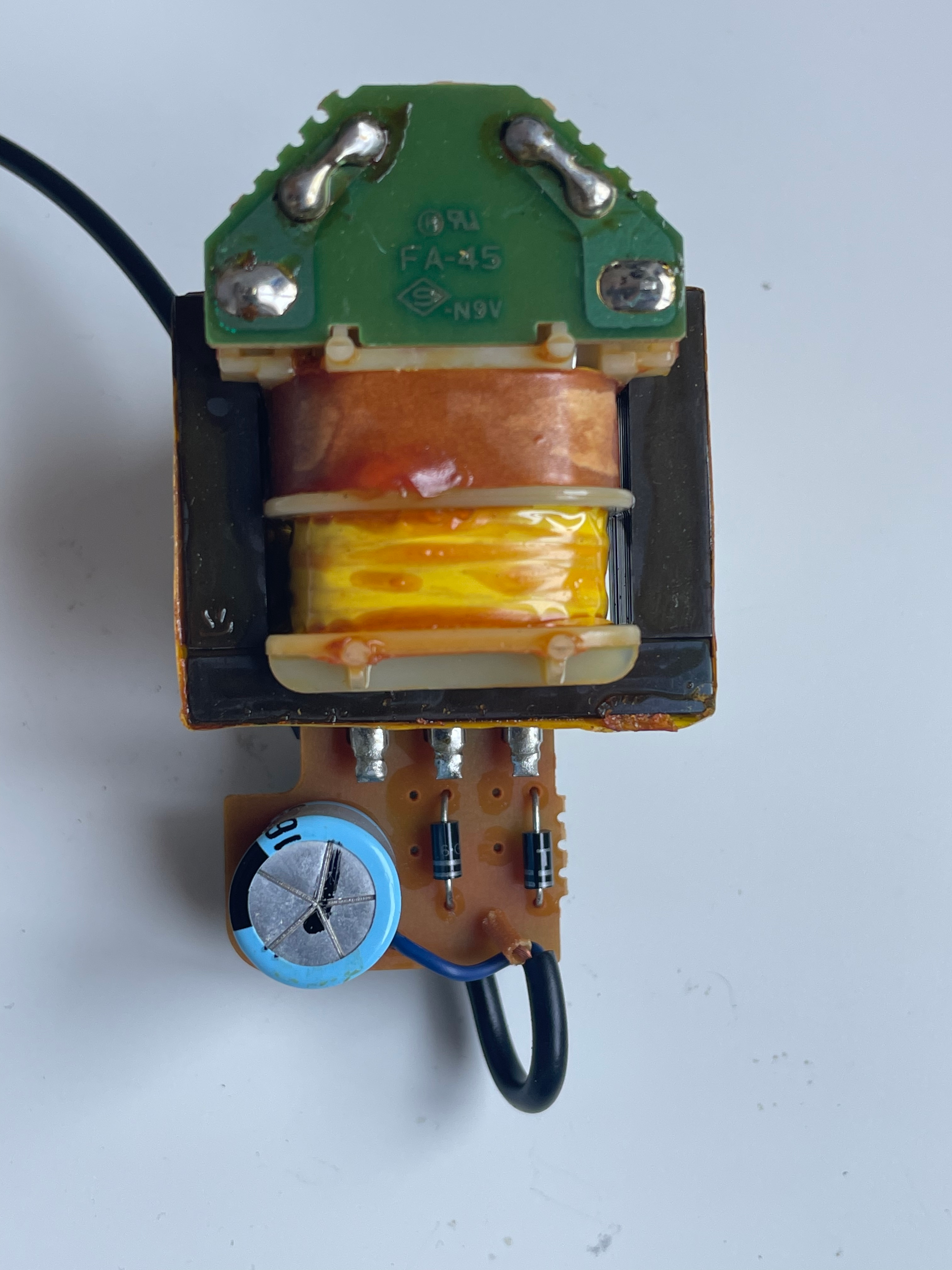

¶ Front

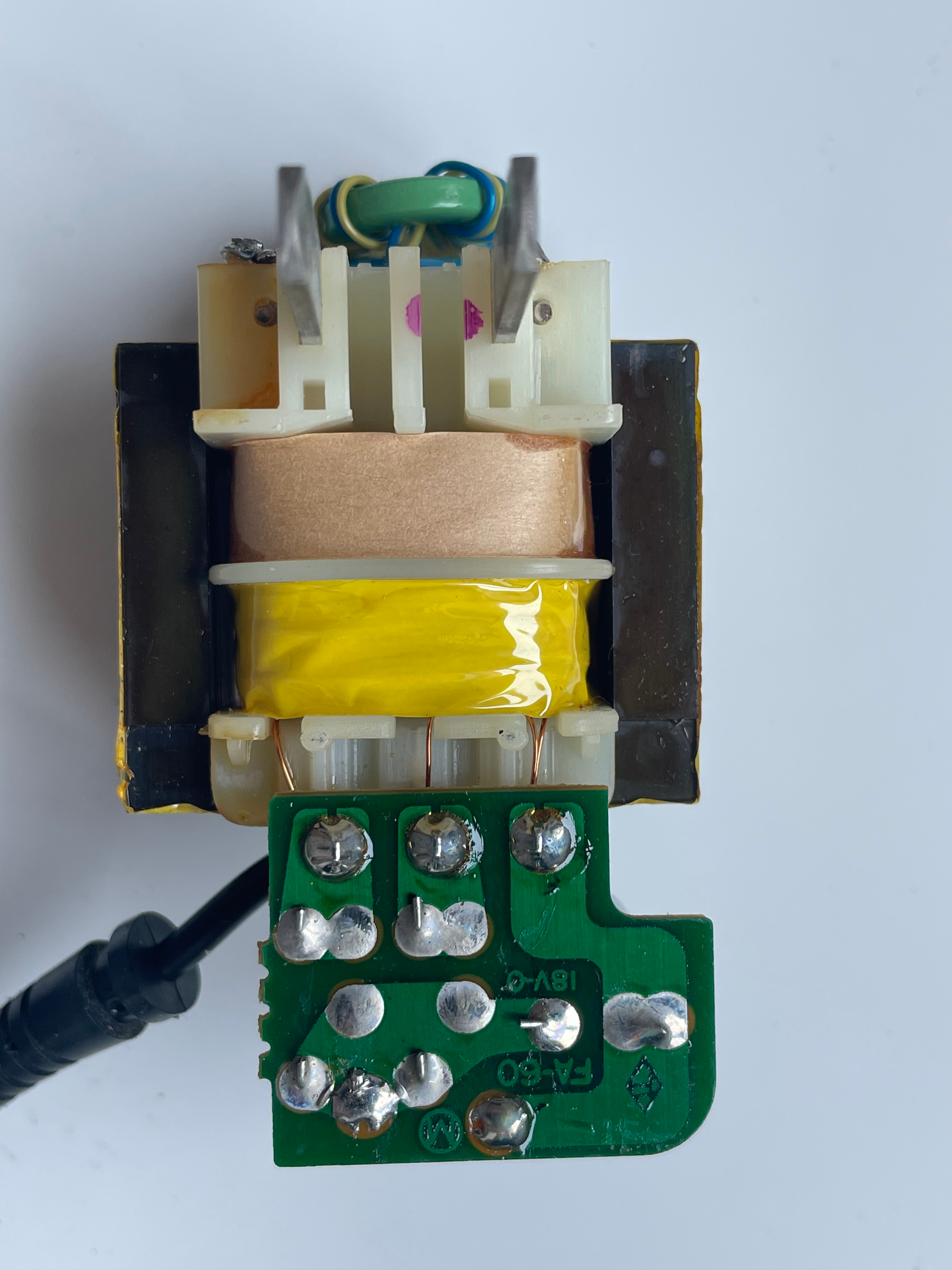

¶ Back
¶ Upper
¶ Components
¶ Capacitors
- C1 | ~96.6nF ceramic axial (on FA-45 AC board)
- C2 | 2200µF 16V electrolytic axial (on FA-60 DC board)
¶ Connectors
- CN | 5.5mm x 2.0mm Barrel Jack
¶ Diodes
- D1 | (?) Marked as "T B 6-G" (on FA-60 DC board)
- D2 | (?) Marked as "T B 6-G" (on FA-60 DC board)
¶ Inductors
- L | ~150µH double coil (on FA-45 AC board)
¶ Transformers
- T | 100VAC to 9VAC | 2 input to 3 output
