¶ Info
NES-004E
56 8583E
94V-0
¶ Photos

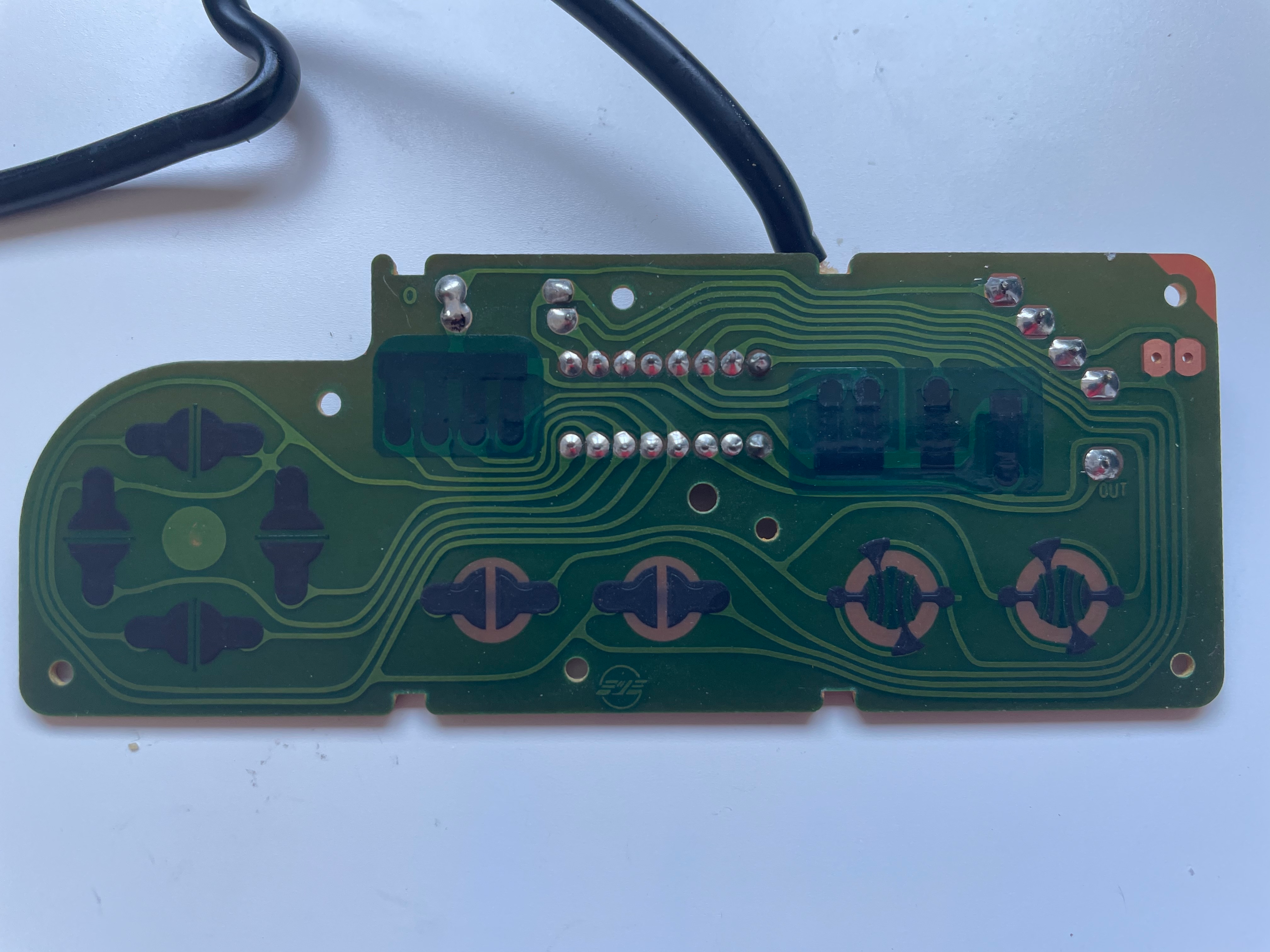

¶ Front
¶ Back
¶ Components
¶ Connectors
There's no proper connector, but for the sake of info:
- CN | To cable
- Pin 1 (White) | +5V
- Pin 2 (Orange) | Latch
- Pin 3 (Red) | Clock
- Pin 4 (Brown) | Ground
- Pin 5 (Yellow) | Data
¶ Integrated Circuits
- IC | BU4021B | DIP-16
¶ Resistors
- R1 (the one above) | 3.6kΩ axial
- R2 (the one below) | 3.6kΩ axial
There are eight printed carbon resistors (PCR) with a value around 48kΩ each.
¶ Switches
- UP | Up
- LEFT | Left
- RIGHT | Right
- DOWN | Down
- START | Start
- SELECT | Select
- A | A
- B | B
¶ Schematics
