¶ Info
NES-RF-SW-02
TCI-A7S-94V-0
1985
PAL
¶ Photos

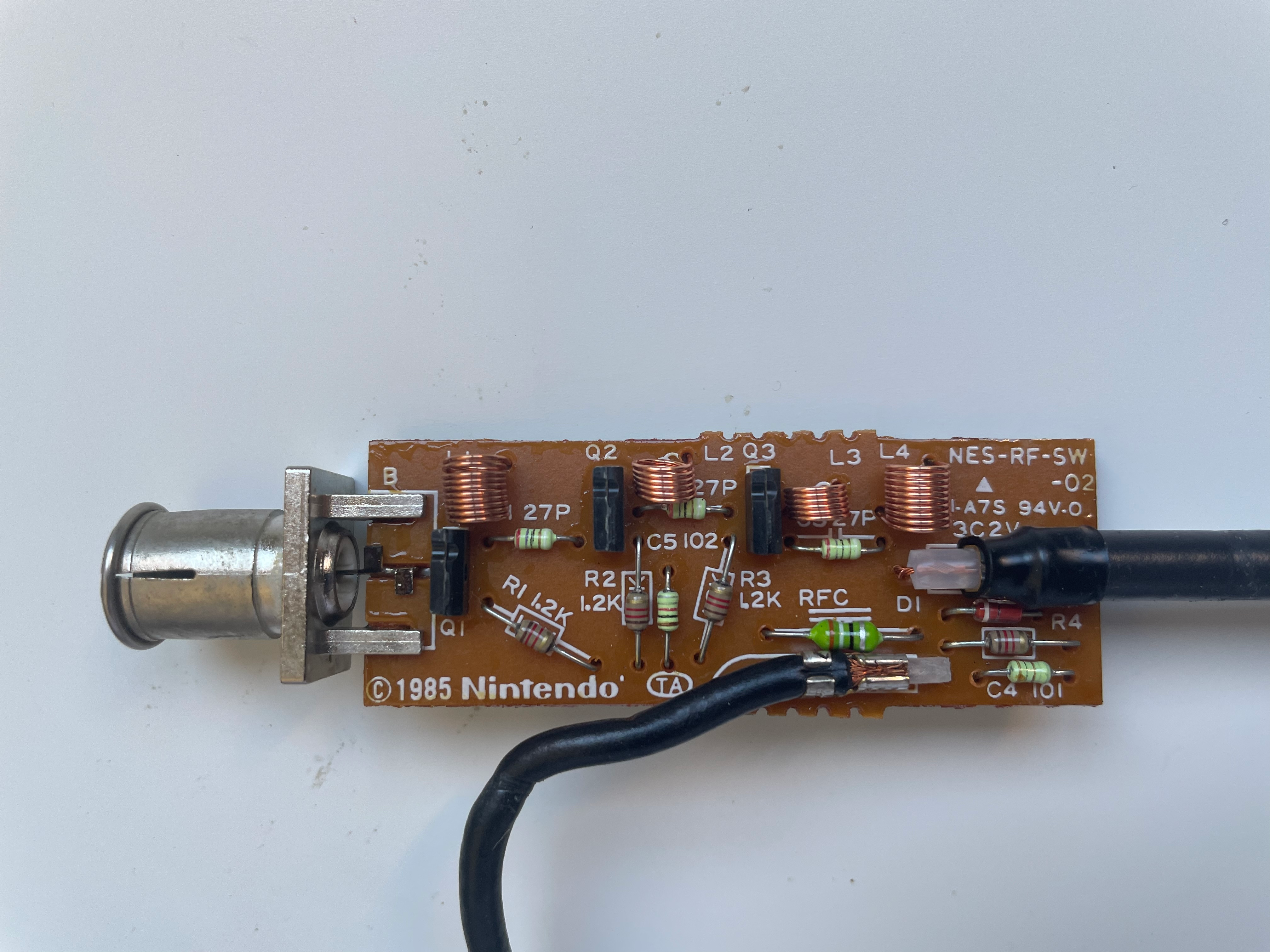

¶ Front

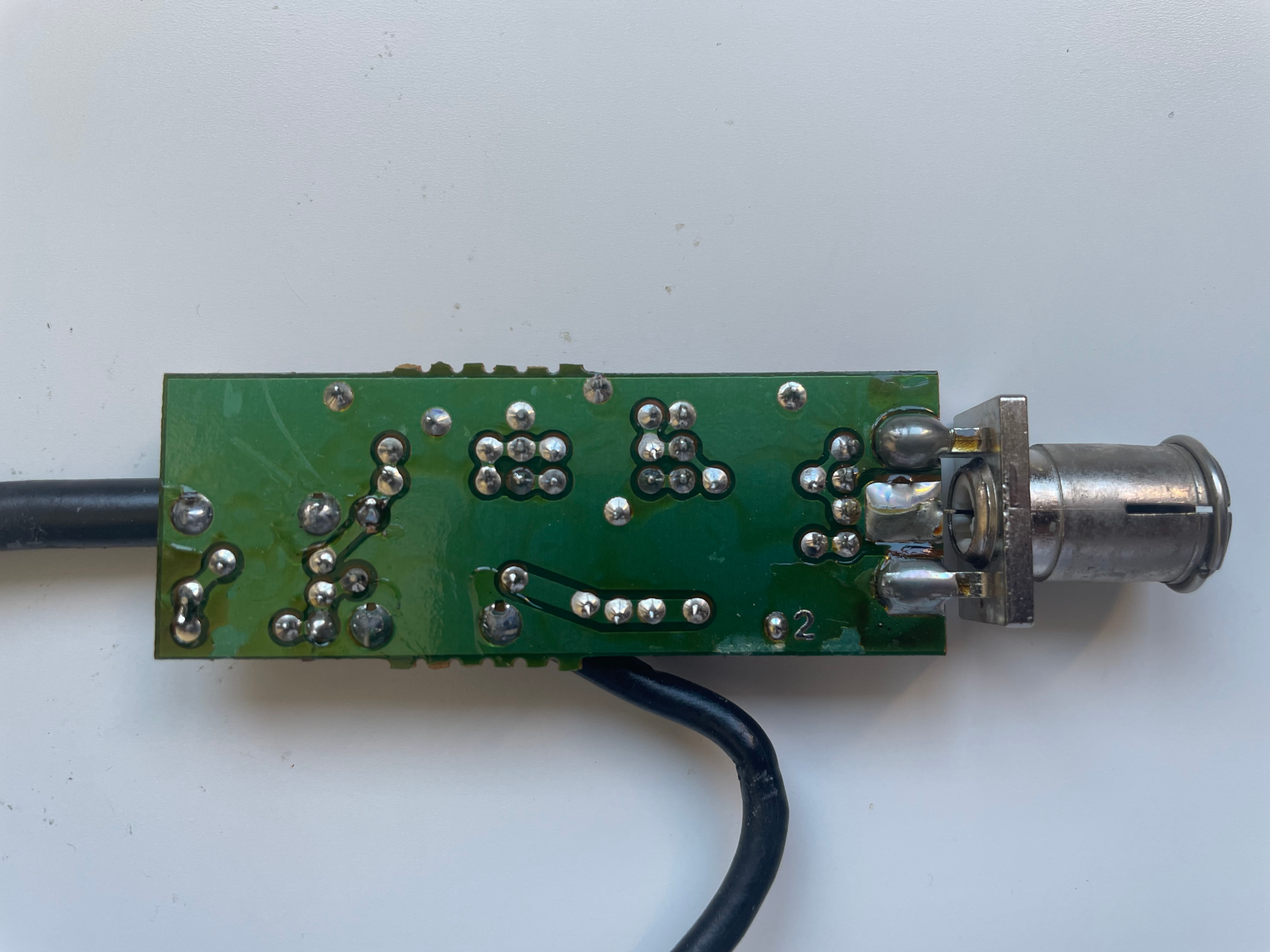

¶ Back
¶ Components
¶ Capacitors
- C1 | 27pF axial
- C2 | 27pF axial
- C3 | 27pF axial
- C4 | 101pF axial
- C5 | 102pF axial
¶ Connectors
- CN1 | Belling-Lee female | To antenna
- CN2 | Belling-Lee male | To TV
- CN3 | RCA male | To NES
¶ Diodes
- D1 | Value unknown. It seems it's not a zener diode although it looks like one.
¶ Inductors
- L1 | ~4µH
- L2 | ~4µH
- L3 | ~4µH
- L4 | ~4µH
- RFC | 39µH
¶ Resistors
- R1 | 1.2kΩ axial
- R2 | 1.2kΩ axial
- R3 | 1.2kΩ axial
- R4 | 1.2kΩ axial
¶ Transistors
- Q1 | 2SC2063N
- Q2 | 2SC2063N
- Q3 | 2SC2063N
¶ Schematics
