¶ Info
1992.10(1)
56V313D
56V314A
HCMK-67X
N3X8
¶ Photos

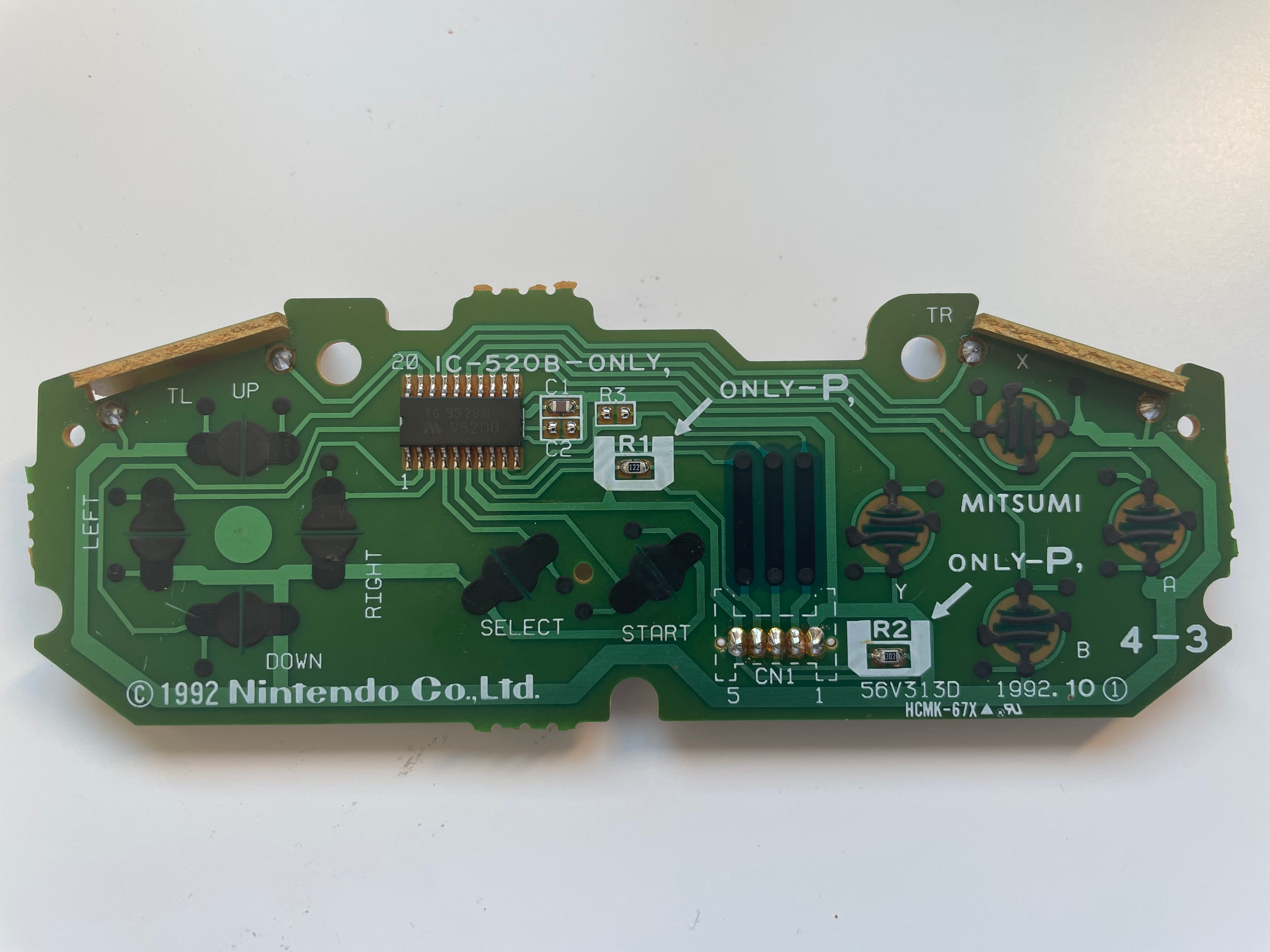

¶ Front

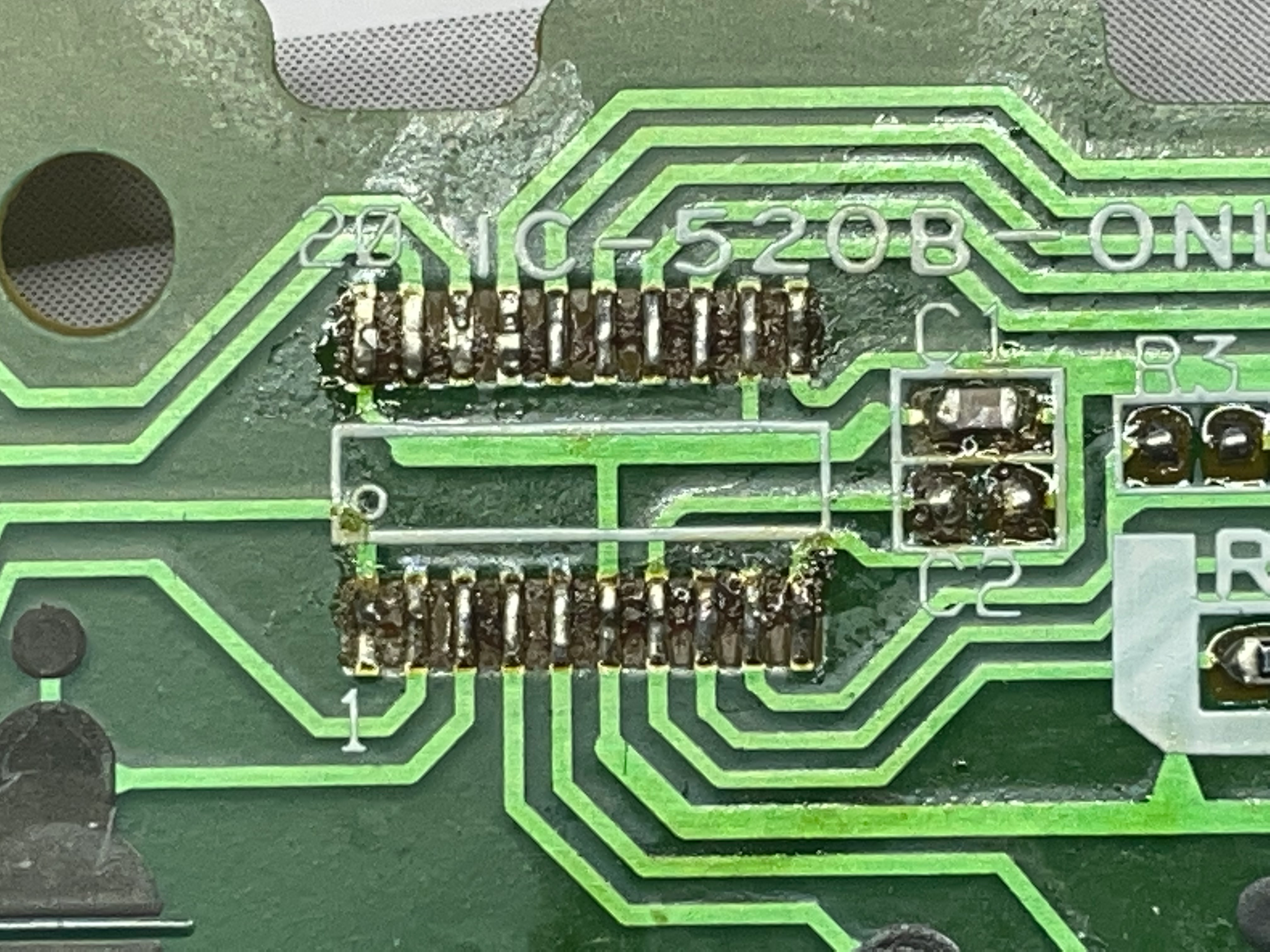

¶ Under V520B

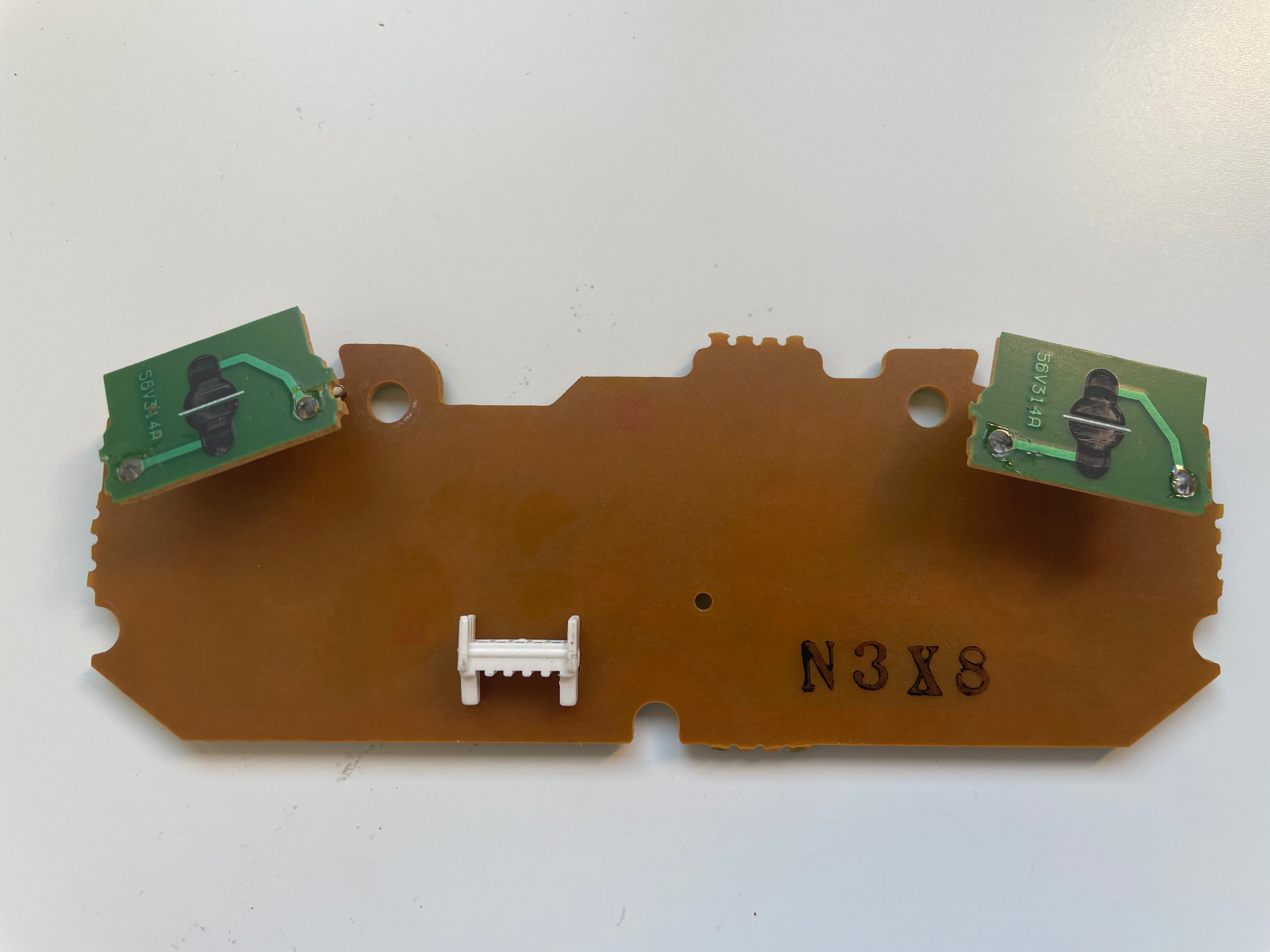

¶ Back
¶ Components
¶ Capacitors
- C1 | ~1nF smd 0805
- C2 | None
¶ Connectors
- CN1 | To controller port
- Pin 1 | GND
- Pin 2 | D0
- Pin 3 | OUT
- Pin 4 | CLK
- Pin 5 | +5V
¶ Integrated Circuits
- IC | V520B | SOP-20
¶ Resistors
- R1 | 1.2kΩ smd 0805
- R2 | 3kΩ smd 0805
- R3 | None
There are also three printed carbon resistors (PCR) with a value around 132Ω each.
¶ Switches
- UP | Up
- LEFT | Left
- RIGHT | Right
- DOWN | Down
- START | Start
- SELECT | Select
- A | A
- B | B
- X | X
- Y | Y
- TL | Trigger left
- TR | Trigger right
¶ Schematics
